Docling Studio

A visual document analysis studio powered by Docling.

Upload a PDF, configure the extraction pipeline, and visualize the results — text, tables, images, formulas, bounding boxes — all from your browser.

Features

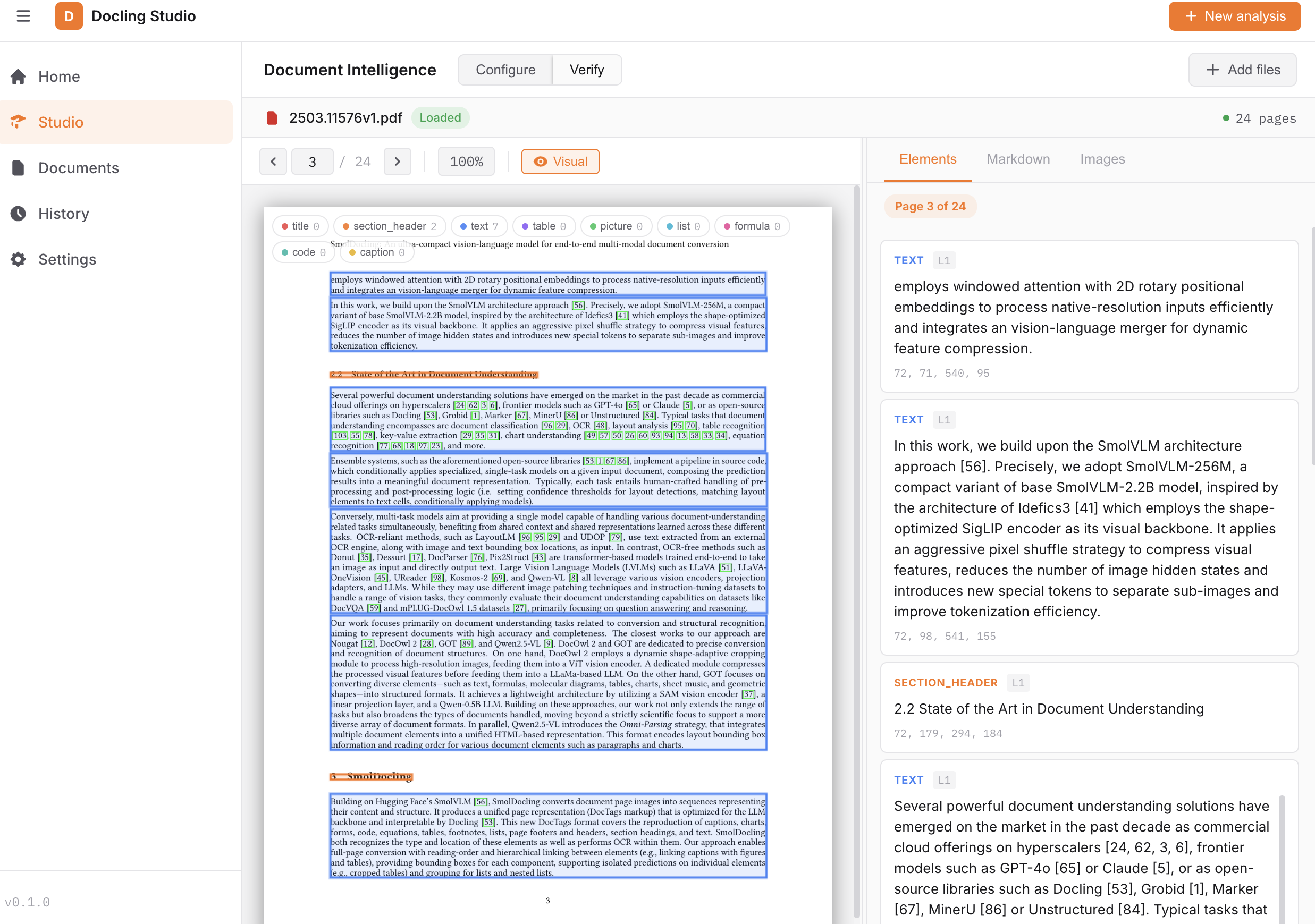

PDF viewer with page navigation, bounding box overlay, and resizable results panel
Configurable Docling pipeline — OCR, table extraction, code/formula enrichment, picture classification & description
Bounding box visualization — color-coded element overlay directly on the PDF
Markdown & HTML export of extracted content
Document management — upload, list, delete
Analysis history — re-visit and open past analyses
Dark / Light theme and FR / EN localization

Layer	Stack
Frontend	Vue 3, TypeScript, Vite, Pinia
Backend	FastAPI, Docling 2.x, SQLite (aiosqlite)
CI	GitHub Actions (lint, type-check, test, build)
Infra	Docker Compose + Nginx

# Docker (fastest)
docker run -p 3000:3000 ghcr.io/scub-france/docling-studio:latest

Open http://localhost:3000 and upload a PDF.

!!! note The first analysis takes longer as Docling downloads its ML models (~400 MB). Subsequent runs are fast.

See Getting Started for local development setup.

MIT — Pier-Jean Malandrino
